Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection

  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
  • Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
Место происхождения Шаньдун, Китай
Фирменное наименование ZKTD
Сертификация ISO 9001:2008, Rohs
Номер модели Zktd-po12
Количество мин заказа 5 шт
Цена USD 48/Pieces
Упаковывая детали Картон, деревянная коробка, жемчужный хлопок.
Время доставки 14 рабочих дней
Условия оплаты L/C, T/T.
Поставка способности 10000 штук/месяц

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Вичат: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Выделить

flexible beam quartz pendulum

,

gold coated quartz pendulum

,

high reflection quartz glass
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
Оставьте сообщение
Характер продукции

Product Description

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 0

Specification

Item Value
Brand Name ZKTD
Application Sensor, Inertial Navigation, instrument
Shape Round
Chemical Composition 99.999% fused silica
Product Name Flexible Beam Quartz Pendulum
Color Clear Transparent
Parallelism <2um
Flatness <0.6um
Surface Roughness Ra <1nm
Thickness Error Of Flexible Beam <1um

Flexible Beam Quartz Pendulum For Inertial Navigation

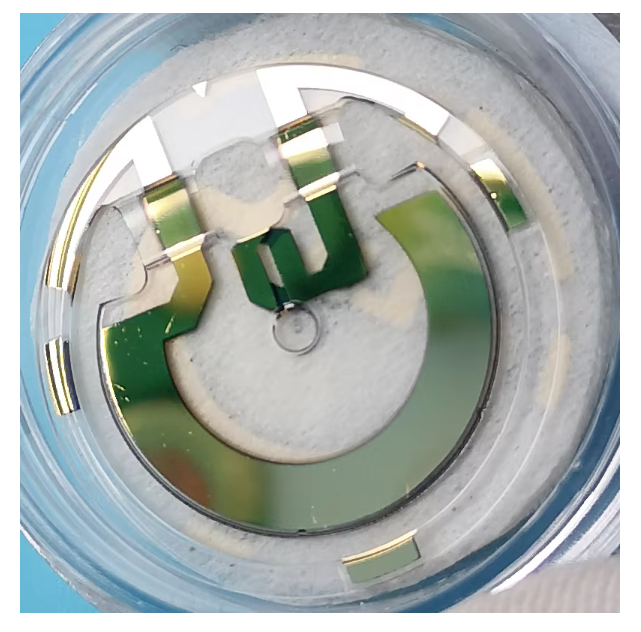

Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.


Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 1

Company Profile


Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 2
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.



Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 3

Certificate


Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 4

Packing & Delivery


Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 5

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection 6

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
